Hi-link HLK-LD6002 60Ghz Heart Rate Radar Sensor Module

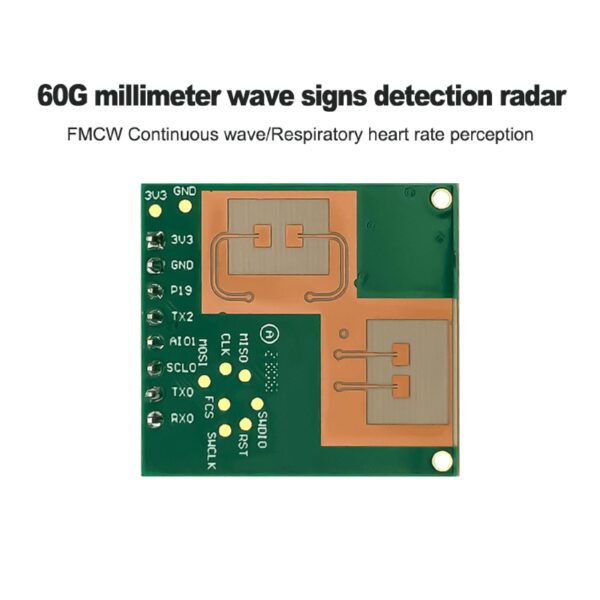

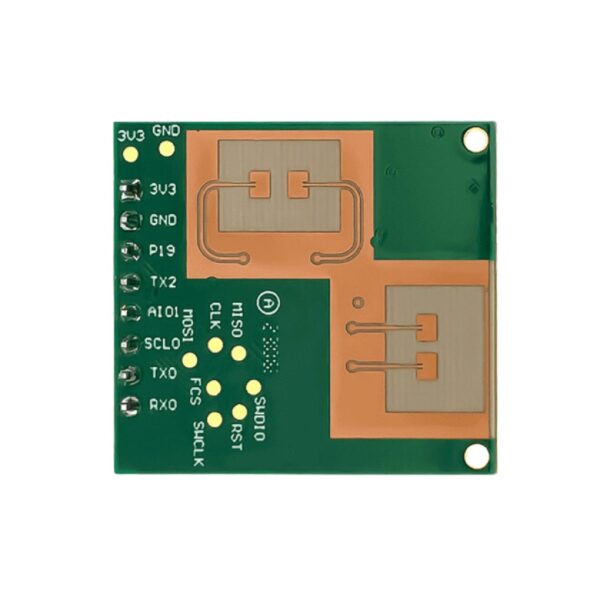

HLK-LD6002 is a radar sensor module developed based on ADT6101P chip, single chip integrated 57~64GHz radio frequency transceiver system, 2T2R PCB microstrip antenna, 1MB flash, radar signal processing unit, ARM ® Cortex®-M3 kernel. This module is based on the FMCW radar mechanism, to detect the surface reflection radar echo of the human body, combined with the radar signal processing algorithm, to realize the single real-time respiratory heart rate frequency measurement.

Product characteristics –

• Radar detection based on FMCW signal
• No contact perception of human Breathing and heart rate
• The maximum detection distance of human Breathing heart rate is 1.5m
• Universal UART interface, to provide the communication protocol
• Reserve multiple groups of IO ports and multiple communication interfaces to support customer secondary development, suitable for multiple scenarios
• Small size, only 25*31.5mm, support needle row connection
• Not affected by temperature, humidity, noise, airflow, dust, light and other environment
