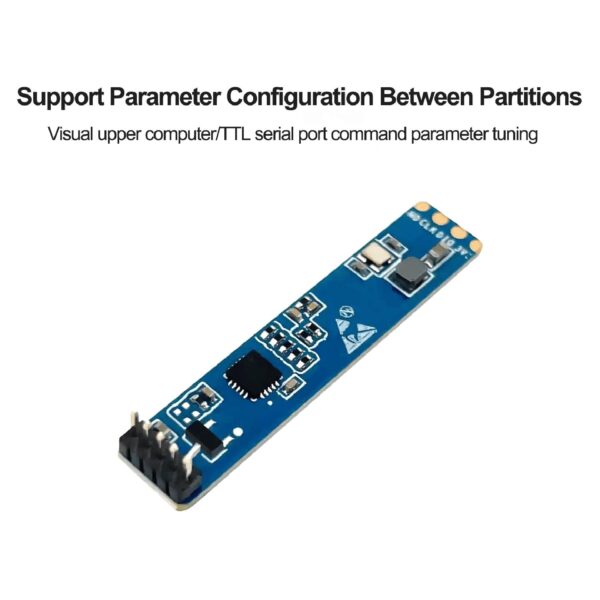

Hi-link HLK-LD2410D 24Ghz Human Presence Radar Sensor Module

The Hi-Link HLK-LD2410D is a compact 24GHz millimeter-wave human presence radar sensor module capable of detecting motion, micro-motion, and static human presence in real time. It features intelligent FMCW radar technology with flexible configuration tools, making it ideal for smart home and IoT applications.

Product Features:

Equipped with single-chip intelligent millimeter wave sensor SoC and intelligent algorithm firmware
Ultra small sensor size: 7mmX35mm
Load default human body sensing configuration, plug and play
24GHz ISM frequency band, can be certified by FCC, CE, and non commission spectrum regulations
3.3V and 5V power supply, supporting a wide voltage range of 3.0V~3.6V and 4.5~5.5V
The average working current is 50mA
Detecting targets for motion, micro motion, and the presence of a human body
Real time reporting of detection results
Provide visualization tools that support configuring detection distance intervals and target disappearance delay times
Support automatic generation of detection thresholds
Support the division of sensing range and completely shield any interference outside the interval
The maximum distance of motion human body sensing is 10m
Large detection angle, with a coverage range of ± 60 °
Support multiple installation methods such as hanging on the top and wall
Trigger and maintain state independent configuration, strong anti-interference ability

15 People watching this product now!

The Hi-Link HLK-LD2410D is an advanced 24GHz millimeter-wave (mmWave) human presence radar sensor module developed using Hi-Link’s intelligent radar sensor chip and embedded human-body detection algorithms.
By adopting FMCW (Frequency Modulated Continuous Wave) radar technology, combined with radar signal processing and intelligent induction firmware, the module accurately detects human motion, micro-motion, and static presence within a defined sensing area and updates detection results in real time.

Unlike PIR sensors, the HLK-LD2410D can reliably sense stationary humans, making it ideal for applications that require continuous occupancy awareness. With plug-and-play default configuration, adjustable sensing distance, configurable disappearance delay, and strong anti-interference capability, users can rapidly develop precise human presence sensing products.

Key Features

Single-chip intelligent mmWave radar SoC with built-in algorithms
24GHz ISM frequency band, compliant with FCC, CE & license-free spectrum regulations
Detects motion, micro-motion & static human presence
Maximum motion detection distance: up to 10m
Wide detection angle: ±60° coverage
Ultra-compact size: 7mm × 35mm
Plug-and-play operation with default human sensing configuration
Real-time reporting of detection results
Configurable sensing distance intervals & disappearance delay
Automatic threshold generation for accurate detection
Configurable sensing zones with shielding of external interference
Independent trigger & maintain configuration for strong anti-interference
Supports ceiling & wall mounting

Technical Specifications

Operating Frequency: 24GHz ISM band
Radar Technology: FMCW (Frequency Modulated Continuous Wave)
Detection Targets: Motion, micro-motion, static human presence
Maximum Detection Distance: Up to 10m (motion)
Detection Angle: ±60°
Power Supply Options:
3.3V (3.0V–3.6V supported)
5V (4.5V–5.5V supported)
Average Operating Current: ~50mA

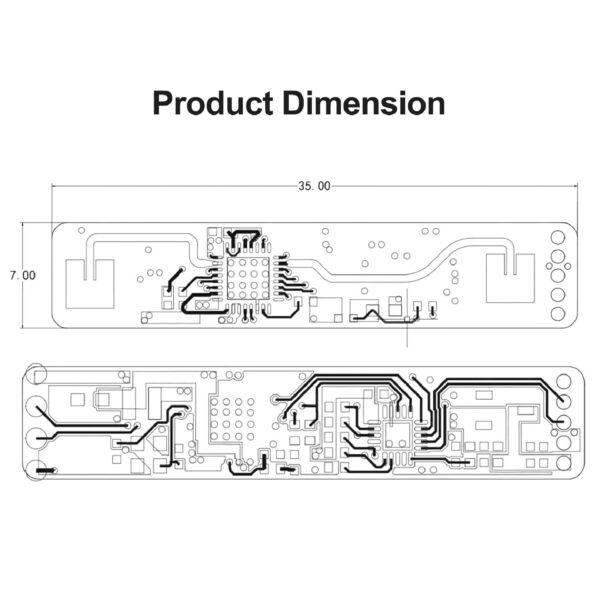

Sensor Dimensions: 7mm × 35mm
Configuration: Visualization tools for distance zones & delay settings
Installation Methods: Ceiling mount, wall mount
Regulatory Design: FCC, CE, ISM band compliant (system-level compliance depends on integration)
