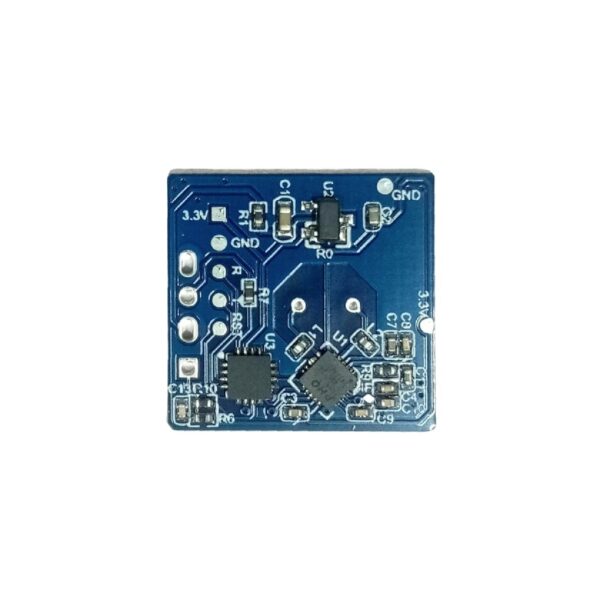

Hi-link HLK-LD021-5G Radar Sensor Module
The Hi-Link HLK-LD020-5G is a compact 5.8GHz Doppler radar motion sensor module designed for low-power embedded motion and presence detection. It offers wide-angle sensing, digital output, and reliable indoor performance for lighting, occupancy, and automation systems.
A compact, low-power 5.8 GHz Doppler radar motion sensor module designed for embedded motion detection applications. It operates in the 5.8 GHz ISM band with integrated signal demodulation, amplification and digital processing, delivering a simple digital motion output. The module features a wide ~110° detection angle, typical motion range of 3–5 m, and is suitable for automated lighting, occupancy sensing, and other presence detection systems with reliable performance in varied indoor environments (not affected by humidity, oil smoke, or water mist).
Functional Capabilities – Hi-link HLK-LD020-5G Radar Sensor Module
Adjustability & Features
- Fast detection mode — improves responsiveness in some scenarios.
- Optional light (photosensitive) detection capability on some configurations — can be used to disable detection in bright ambient conditions (e.g., daytime mode).
15
People watching this product now!
Description
The Hi-Link HLK-LD020-5G is a compact, low-power 5.8GHz Doppler radar motion sensor module designed for embedded motion detection and occupancy sensing applications. Operating in the 5.8GHz ISM band, the module integrates signal demodulation, amplification, and digital processing to deliver a simple and reliable digital motion output.
With a wide detection angle of approximately 110° and a typical motion sensing range of 3 to 5 meters, the HLK-LD020-5G is ideal for automated lighting, smart occupancy systems, and presence-based control applications. Unlike PIR sensors, radar-based detection performs reliably in environments affected by humidity, oil smoke, or water mist, making it suitable for challenging indoor installations.
The module also supports fast detection mode for improved responsiveness and, in some configurations, includes optional ambient light detection, allowing integration into day/night or energy-saving automation systems.
Key Features : Hi-link HLK-LD020-5G Radar Sensor Module
- 5.8GHz Doppler radar technology
- Compact, low-power motion detection module
- Integrated signal demodulation & digital processing
- Digital motion output for easy interfacing
- Wide sensing angle: approx. 110°
- Typical detection range: 3–5 meters
- Fast detection mode for improved response
- Optional light sensing capability on supported versions
- Stable indoor performance in humidity, oil smoke, and mist
- Ideal for ceiling or wall mounting
Technical Specifications : Hi-link HLK-LD020-5G Radar Sensor Module
- Operating Frequency: 5.8GHz ISM band
- Radar Technology: Doppler radar
- Detection Type: Motion / presence detection
- Detection Range: Approx. 3–5 meters
- Detection Angle: Approx. 110°
- Output Type: Digital motion output
- Processing: Integrated demodulation, amplification & digital logic
- Special Modes: Fast detection mode
- Optional Feature: Ambient light / photosensitive detection (configuration dependent)
- Installation: Ceiling or wall mounted recommended
(Refer to the datasheet for exact electrical parameters, pin configuration, and mounting guidelines.)
Applications : Hi-link HLK-LD020-5G Radar Sensor Module
- Automated lighting systems
- Occupancy sensing for smart buildings
- Presence detection in indoor automation
- Energy-saving lighting control
- Smart home & office automation
- Embedded motion sensing systems
Package Includes : Hi-link HLK-LD020-5G Radar Sensor Module
1 × Hi-Link HLK-LD020-5G 5.8GHz Radar Sensor Module
