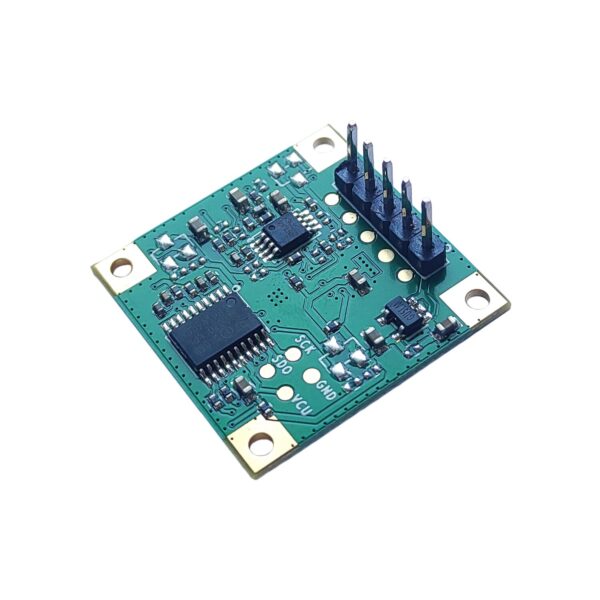

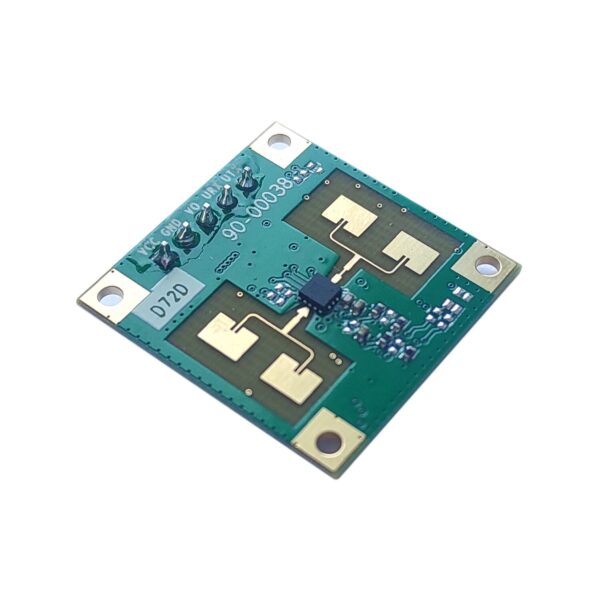

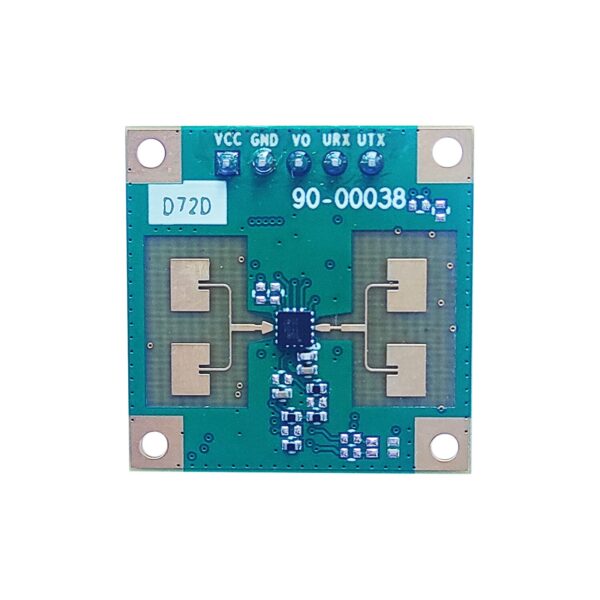

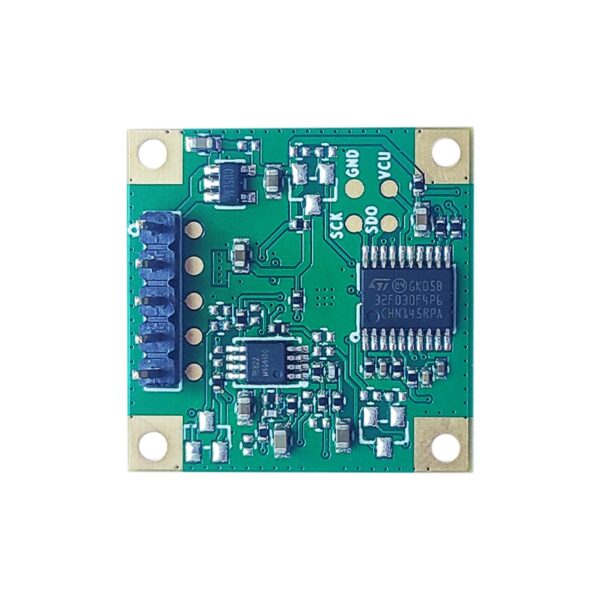

Hi-link HLK-LD1115H-24G Radar Sensor Module

HLK-LD1115H Radar Sensor is a high sensitivity 24GHz millimeter wave human presence detection radar module. The main feature of this module is that on the basis of the function of the traditional human body induction radar, it also has the function of judging the existence of the human body by detecting and accumulating small movements such as human breathing. Therefore, the presence detection within a certain range has higher accuracy and is not easy to miss.

Specifications : HLK-LD1115H-24G

Frequency : 24G-24.5GHz
Power Supply: 3.6~5V
Operating Current: 90mA
High performing antenna
Detection distance: 9m
Flexible install location
High accuracy

15 People watching this product now!

Specifications: HLK-LD1115H Radar Sensor

 Frequency: 24G-24.5GHz

 Modulation method: CW

 Detection distance: > 4m static human presence detection, > 16m motion detection

 Range: hanging height 3m, static body detection coverage radius 2m, mobile detection radius > 5m

 Power supply: 3.6-5V

 Current: 70mA

 Output serial level: 3.3V

 Detection cycle: adaptive

 Antenna half power angle: horizontal ±57°, vertical ±24°(see the figure below for the definition of antenna horizontal/vertical direction)

 Data format: Serial port ASCII output/high and low level

 Start-up time: about 15 seconds

 Small size: 22.95mm×20mm

Applications:

 Security devices

 Smart home automation

 Industrial appliances

Product Schematic: HLK-LD1115H Radar Sensor

Warmly notes:

Modules can penetrate non-metallic enclosures without openings. Common materials include plastic, glass, wood, ceramic, and more. Especially for human presence detection applications, wall-mounted plastic 86-box panels and ceiling-mounted ceiling buckle enclosures are recommended.

Package Includes – 1 x HLK-LD1115H Radar Sensor

CLICK HERE TO DOWNLOAD DATASHEET
