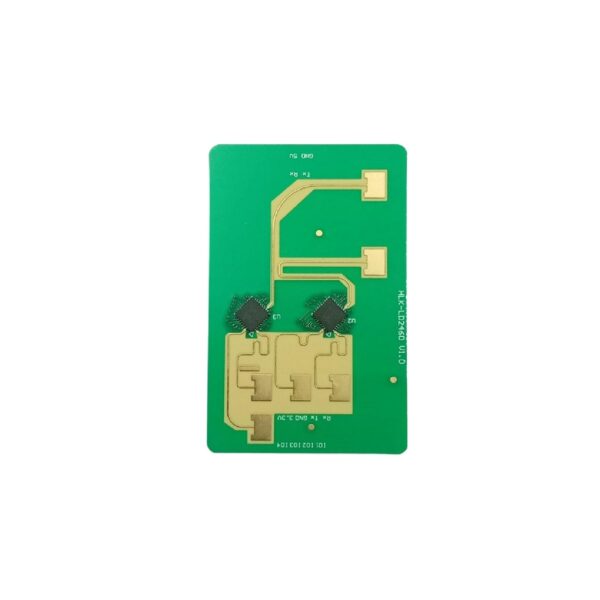

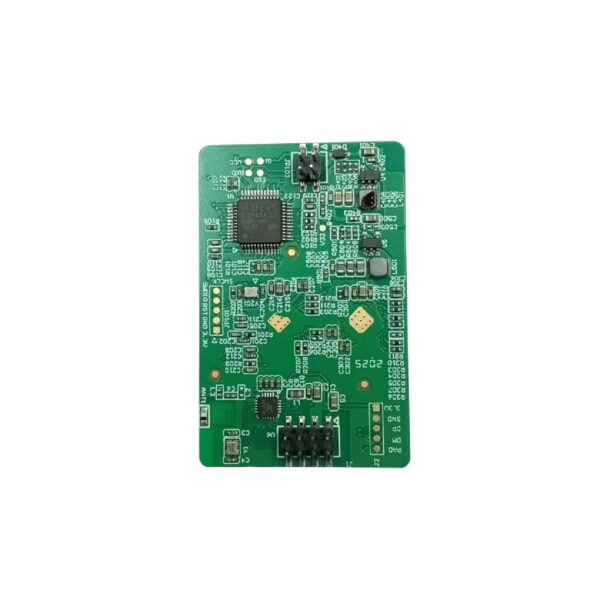

Hi-link HLK-LD2460 24Ghz Human Motion (5p) Tracking Radar Sensor Module

The Hi-Link HLK-LD2460 is a high-performance 24GHz millimeter-wave (mmWave) radar sensor module designed for human motion detection and multi-target tracking. Built on a dual 1T2R (one transmitter, two receivers) radar architecture, the HLK-LD2460 delivers enhanced spatial resolution and accurate tracking of up to 5 moving individuals within its sensing area.

Using advanced radar signal processing, the module accurately determines distance, angle, and movement of human targets, making it ideal for smart homes, offices, hotels, and elderly care environments. Unlike camera-based systems, radar sensing preserves privacy and operates reliably regardless of lighting conditions.

With wide horizontal and vertical coverage, fast detection times, and support for over-the-air (OTA) firmware updates, the HLK-LD2460 is well suited for scalable and future-ready smart sensing solutions.

Key Features

• 24GHz FMCW radar technology for precise human motion tracking
• Multi-target detection: Track up to 5 individuals simultaneously
• Dual 1T2R radar architecture for improved spatial resolution
• Wide angle coverage:
• Horizontal: up to 120°
• Vertical: up to 90°
• High detection accuracy for distance and angle
• Fast detection time:
• Moving targets: ~0.5s
• Static targets: ≤30s
• OTA firmware update support for easy upgrades
• Privacy-safe operation (non-visual sensing)
• Reliable indoor performance for continuous monitoring

Technical Specifications

• Operating Frequency: 24GHz ISM band
• Radar Technology: FMCW (Frequency Modulated Continuous Wave)
• Radar Architecture: 1T2R (1 Transmitter, 2 Receivers)
• Maximum Tracked Targets: Up to 5 people

Detection Range:

• Moving Targets:
• ±50° ≥ 6 m
• ±50° ~ ±60° ≥ 5.5 m
• Static Targets:
• ±50° ≥ 5 m
• ±50° ~ ±60° ≥ 4.5 m
• Distance Performance:

• Distance Resolution: 0.75 m

• Distance Accuracy: ≤ ±0.3 m

Angle Performance:

• Horizontal Angle Range: Up to 120°
• Vertical Angle Range: Up to 90°
• Angle Resolution: 40°
• Angle Accuracy: ≤ ±5°
• Firmware Update: OTA supported
• Application Environment: Indoor human motion tracking

(Refer to the datasheet for full electrical, interface, and installation details.)

Applications

• Smart home occupancy-based lighting & HVAC control
• Office desk occupancy & space utilization analytics
• Hotel room occupancy sensing & energy management
• Elderly care & assisted living movement monitoring
• Smart buildings & people flow analysis
• IoT human motion tracking solutions

Package Includes

• 1 × Hi-Link HLK-LD2460 24GHz Human Motion Tracking Radar Sensor Module

CLICK HERE TO DOWNLOAD DATASHEET
