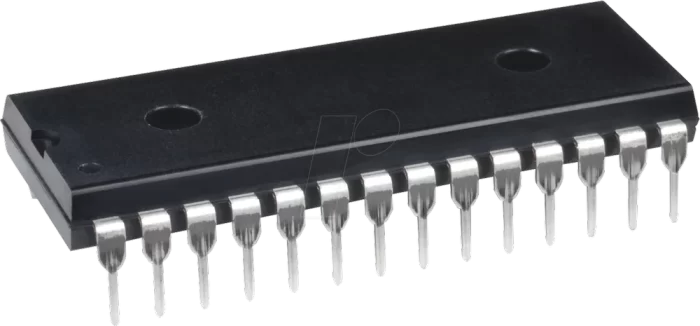

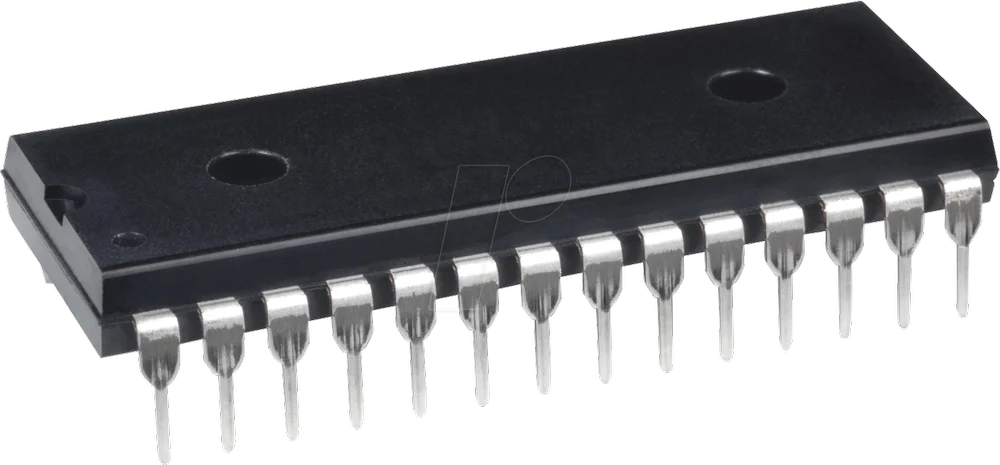

PIC16F18856-I/SP PIC Microcontroller
- Mounting Type – SMD
- Number – Of Pin 28 Pin
- Current – 2.1 A
- Color – Black and Silver
- Shape – Rectangle
- Voltage – 5.4 V
- Temperature – 40 Degree C to +85 Degree C
- Material – Plastic and SS
- Model No – PIC16F18856-I/SP
- Country of Origin – Made in India
11
People watching this product now!
Description
PIC16F18856-I/SP PIC Microcontroller
PIC16(L)F18856/76 microcontrollers feature Analog, Core Independent Peripherals and Communication Peripherals, combined with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. The family will feature the CRC/SCAN, Hardware Limit Timer (HLT) and Windowed Watchdog Timer (WWDT) to support customers looking to add safety to their application. Additionally, this family includes up to 28 KB of Flash memory, along with a 10-bit ADC with Computation (ADC2) extensions for automated signal analysis to reduce the complexity of the application.
Core Features:
- C Compiler Optimized RISC Architecture
- Only 49 Instructions
- Operating Speed: – DC – 32 MHz clock input – 125 ns minimum instruction cycle
- Interrupt Capability
- 16-Level Deep Hardware Stack
- Three 8-Bit Timers (TMR2/4/6) with Hardware Limit Timer (HLT) Extensions
- Four 16-Bit Timers (TMR0/1/3/5)
- Low-Current Power-on Reset (POR)
- Configurable Power-up Timer (PWRTE)
- Brown-out Reset (BOR) with Fast Recovery
- Low-Power BOR (LPBOR) Option
- Windowed Watchdog Timer (WWDT): – Variable prescaler selection – Variable window size selection – All sources configurable in hardware or software
- Programmable Code Protection
