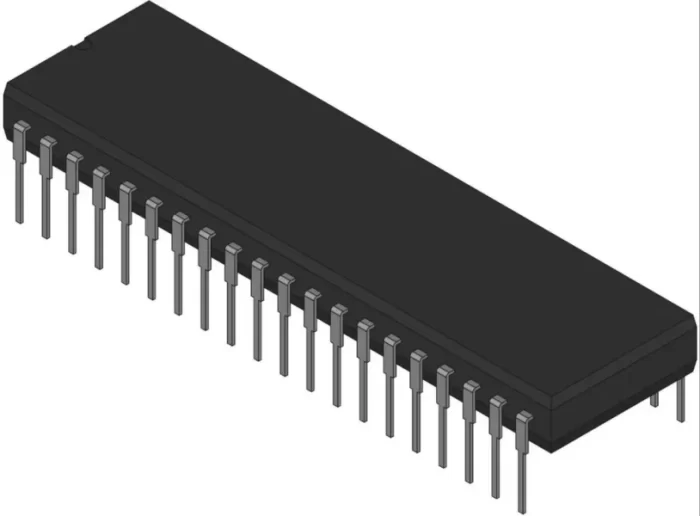

MT8816AP1 Microchip Expertise Inc Analog Audio/Video 45MHz
The Zarlink MT8816 is fabricated in Zarlink’s ISOCMOS know-how offering low energy dissipation and excessive reliability. The system accommodates a 8 x 16 array of crosspoint switches together with a 7 to 128 line decoder and latch circuits.
Any one of many 128 switches will be addressed by choosing the suitable seven tackle bits. The chosen swap will be turned on or off by making use of a logical one or zero to the DATA enter.
VSS is the bottom reference of the digital inputs. The vary of the analog sign is from VDD to VEE. Chip Choose (CS) permits the crosspoint array to be cascaded for matrix growth.
